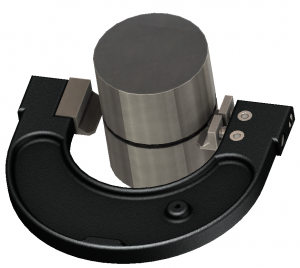

U Type

1.00mm to 220mm
Adjustable Iron GaugesManufactured to ANSI B47 – 1- 1988 standard, the gauges can be supplied as standard in an open condition for Customer setting or, alternatively, set and sealed for dedicated feature inspection.
The U type has 2.5mm thick measuring blades making the gauge ideal for checking the minor diameter of external grooves, or in areas where there is limited gauge access.
Construction of the gauge centres on a high quality stabilised cast iron frame, making the gauges an ideal choice for continuous production use, enabling periodic adjustment and re-set to compensate for wear. The measuring feature consists of a hardened tool steel fixed anvil block and two opposing, adjustable square anvils also manufactured in hardened tool steel. The maximum parallelism error is 0.005mm (Sizes 1 – 6) and 0.008mm (Sizes 7 – 13).
Gauge life and dimensional stability are guaranteed based on well proven manufacturing processes incorporating a stabilized cast iron frame and a robust quality management system.
Options:
• Narrower blade thickness and lengths.
• Customised blade profiles incorporating chamfers and radii.
• Set and sealed to dedicated Go and No Go dimensions.
• UKAS Certification

Drawings:
Snap Gages – Type U
Snap Gauge U Type Anvil Options
