Cone Depth Gauges

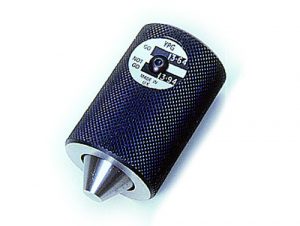

cone depth gaugesSometimes known as “Flush Pin” gauges.
Used primarily in production inspection areas for checking the depth and, or diameter of internal countersink or chamfer component features where the workpiece tolerance is no smaller the 0.10mm.
Both the barrel and measuring pin are manufactured from tool steel for long life in a robust environment, a key feature of this type of gauge is they can be reworked to compensate for any wear on the leading face of the measuring pin.
Gauge life and dimensional stability are guaranteed based on well proven manufacturing processes and a robust quality management system.
Options:
• Stepped outer barrel to clear component features.
• UKAS certification.
