B2 Gap and step Gauge

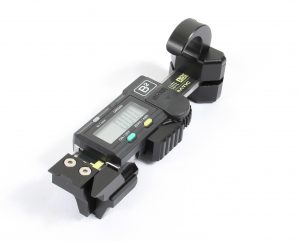

Gap & Step GaugeThe B2 Gap and Step Gauge is an ideal measuring tool for assemblies where panel flushness and gap specification is paramount. The instruments design allows the inspector to take measurements single handed, a feature particularly useful when measuring almost inaccessible features. A resolution of 0.01mm couples with an accuracy across the measuring range of 23mm meets the majority industries requirements.

B-Squared gauges are designed by experienced users of digital measuring equipment, resulting in an ergonomic, compact product giving consistent, long term, measuring accuracy and repeatability.

Buy Online



Technical Specifications:

Part No: GAPSG2-SPC & GAPSG2
Gap Range: 1mm to +23mm.
Step Range: -6.0m to +23mm.
Resolution: 0.01mm.
Accuracy: +/-0.02mm
Repeatability: 0.01mm.
Adjustable wrist strap, dust and moisture proof case.

Options:
• Wi Fi and cable connectivity for SPC data gathering.
• Application specific anvils
• Extended measuring range up to 50mm.
Product Data Sheet Download.
GAPSG2 data sheet.
